CREVIS 1.3MP, 50fps, SWIR TES200 Raven GigE Camera

Camera Summary

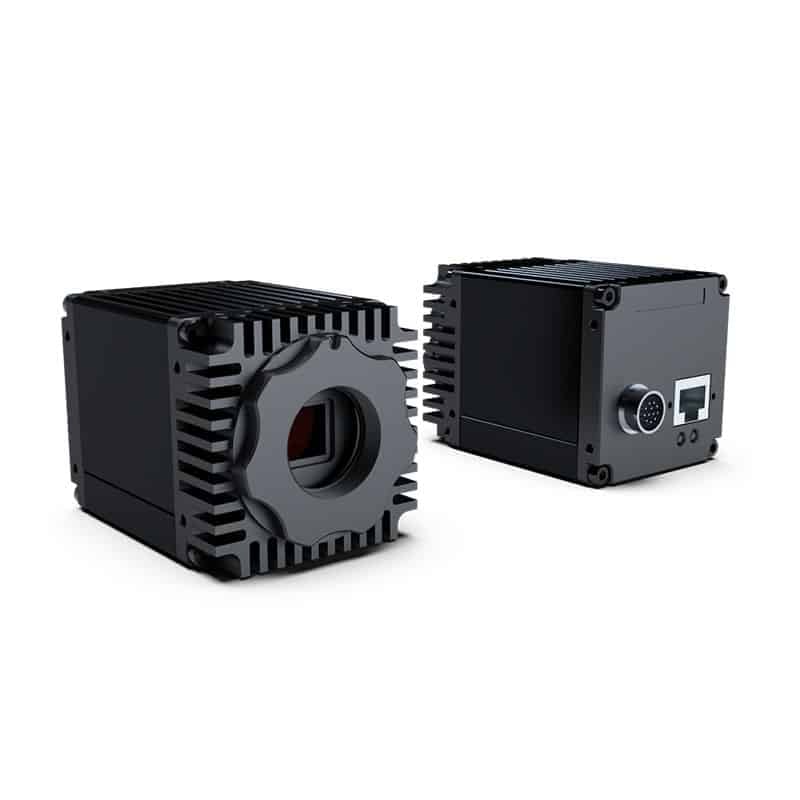

The CREVIS HG-T130SW is an industrial-grade 1.3MP CMOS SWIR GigE camera engineered to make high-volume automated inspection highly affordable. Powered by the advanced TriEye TES200 Raven sensor, this $3,500 camera shatters the traditional $10,000 price barrier of standard InGaAs alternatives. Delivering 50fps and exceptional near-infrared sensitivity, it provides a disruptive, budget-friendly solution for manufacturers requiring precise material differentiation, hidden moisture detection, and non-contact penetration inspection on high-speed production lines.

Features of the CREVIS SWIR TES200 Raven GigE Camera

• Easy integration via an API library
• Extensive firmware features
• External and software triggering
• Gigabit Ethernet interface providing 1Gbps of bandwidth with a maximum transmission distance of 100m

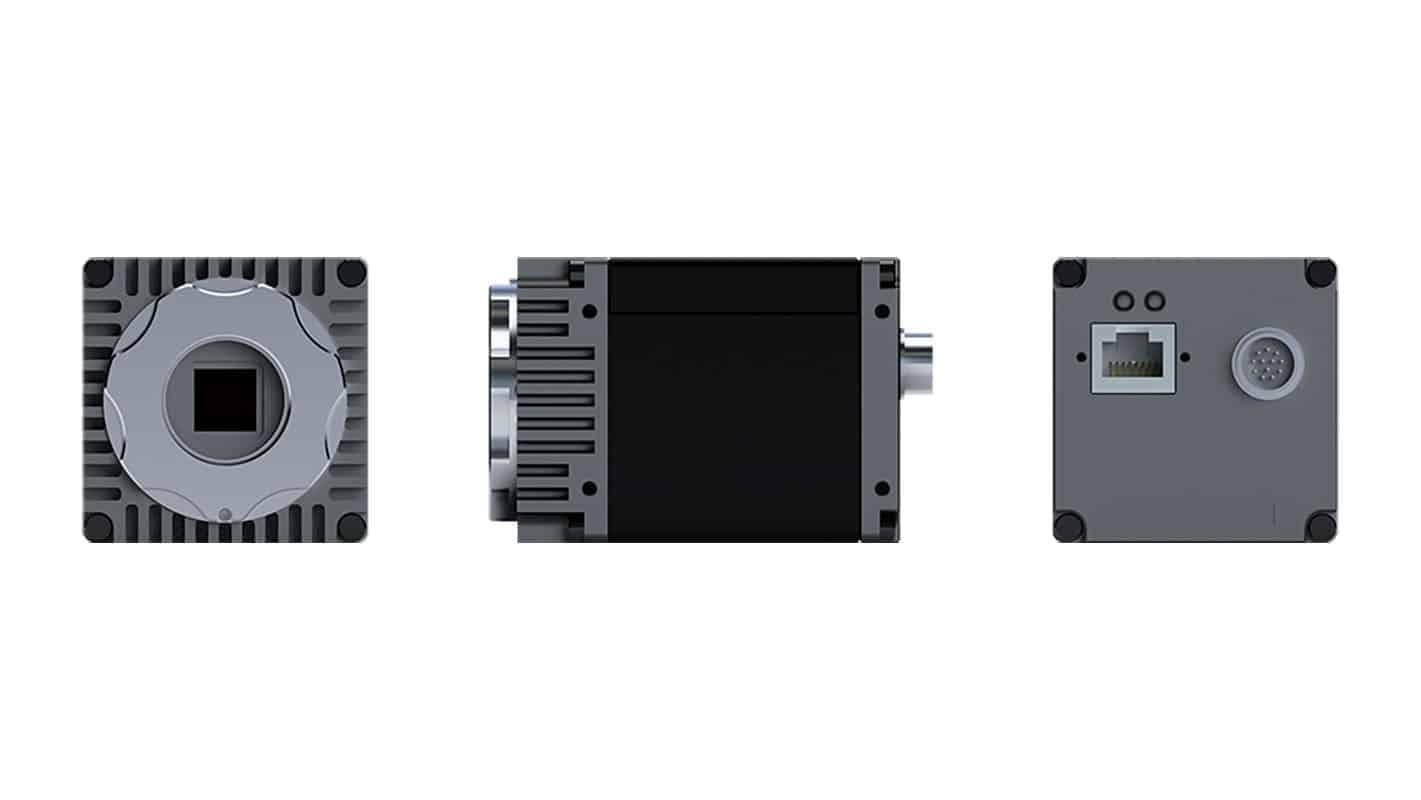

• Dimensions: 55mm x 55mm x 85mm
• Conforms to GigE Vision protocol and the GenICam standard
• Conforms to CE and FCC standards
• Designed and manufactured in South Korea
• US import tariff-friendly

Industry Applications Include

• Quality control: Detecting defects in silicon, glass, and metals
• Food inspection: Identifying foreign objects, bruises, or water content in food products
• Pharmaceutical inspection: Verifying packaging integrity and detecting contaminants
• Semiconductor Inspection: Analyzing wafer defects and inspecting integrated circuits
• Agriculture: Monitoring crop health, detecting water stress, analyzing fruit ripeness

Application Examples

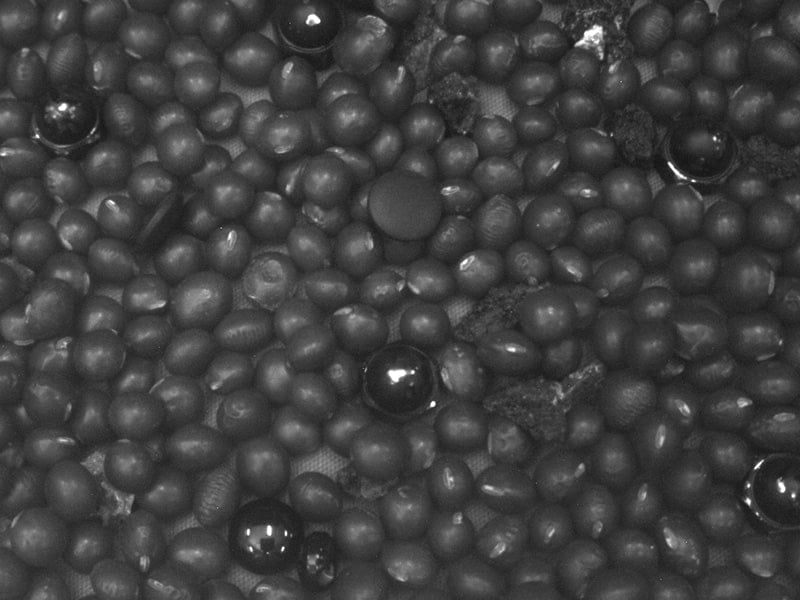

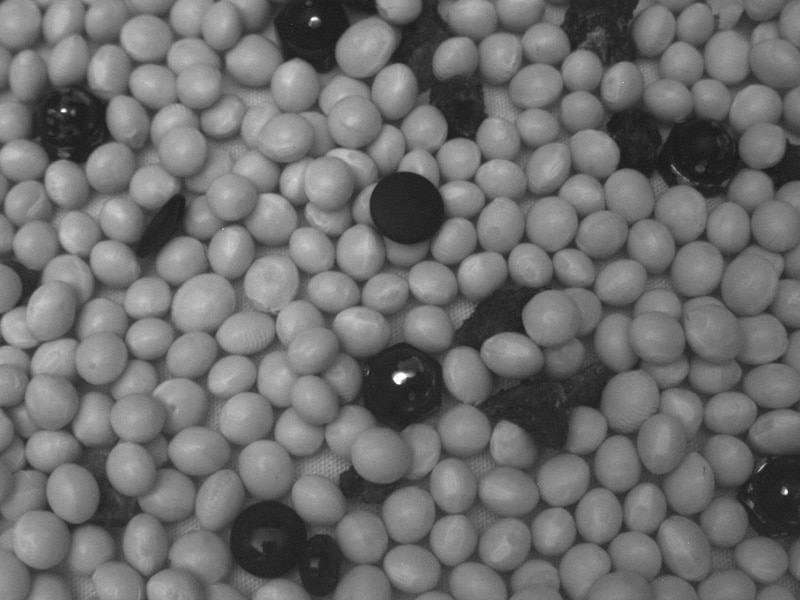

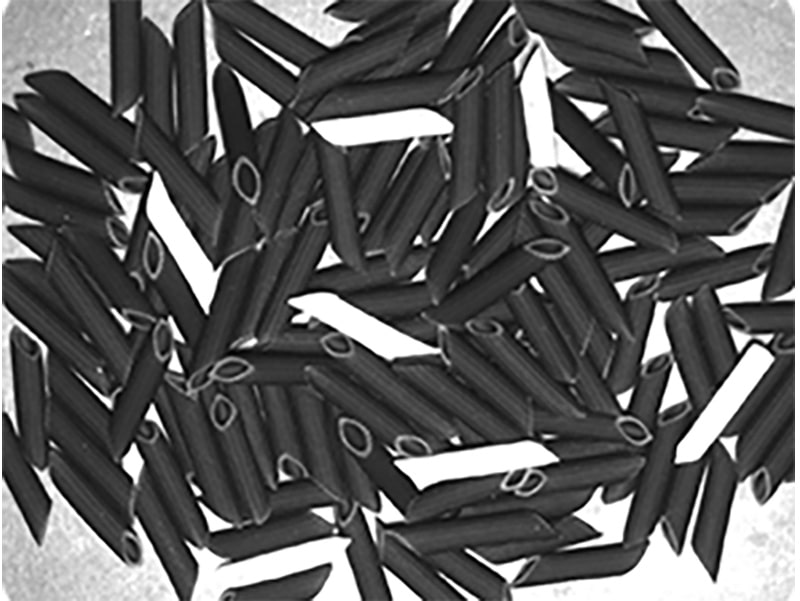

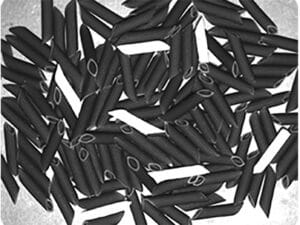

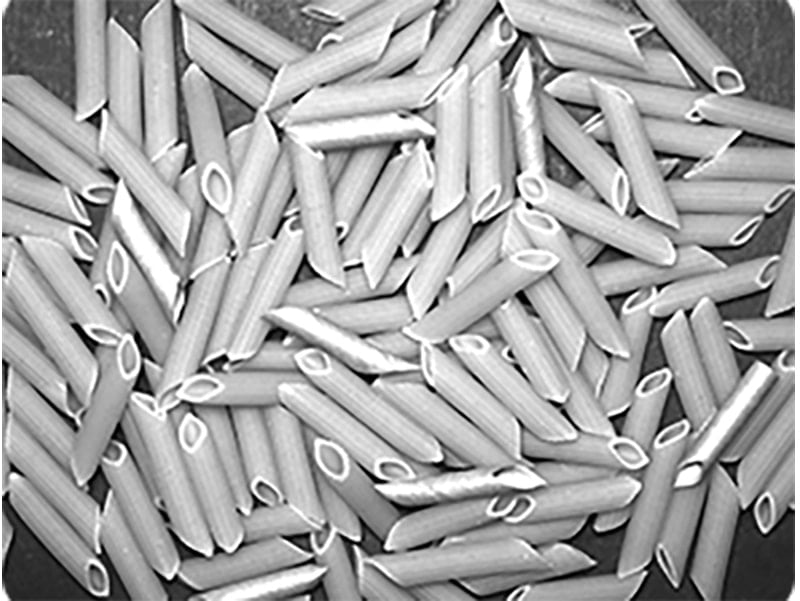

Material Differentiation

SWIR imaging spots differences between materials that appear identical in visible light by reading their unique SWIR absorption and reflection characteristics, offering enhanced material differentiation for quality control and inspection tasks.

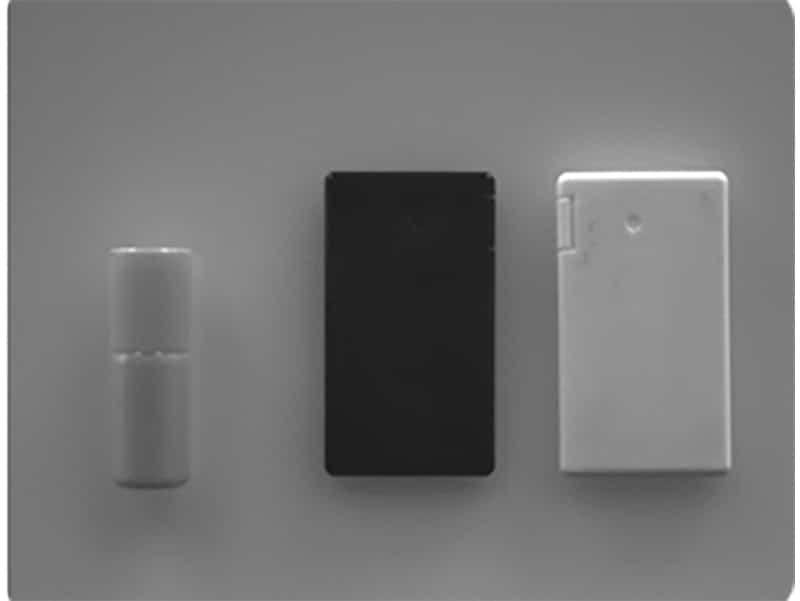

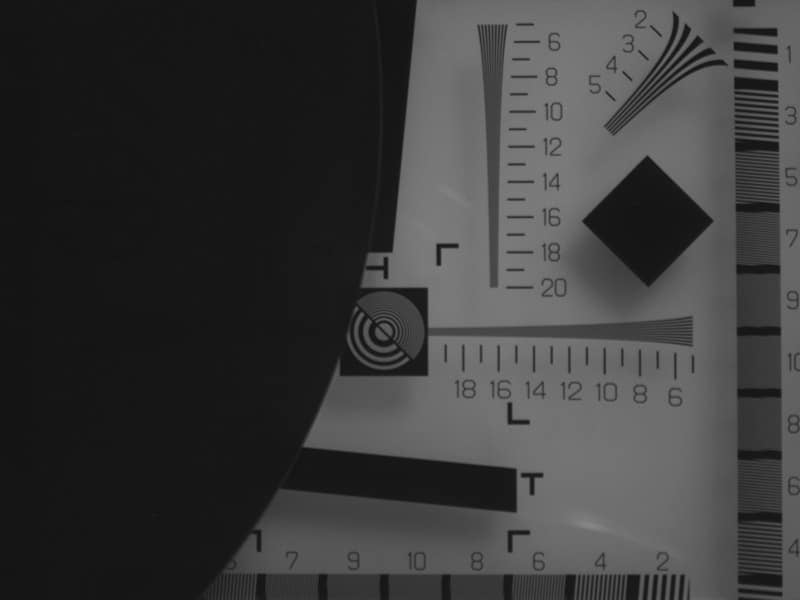

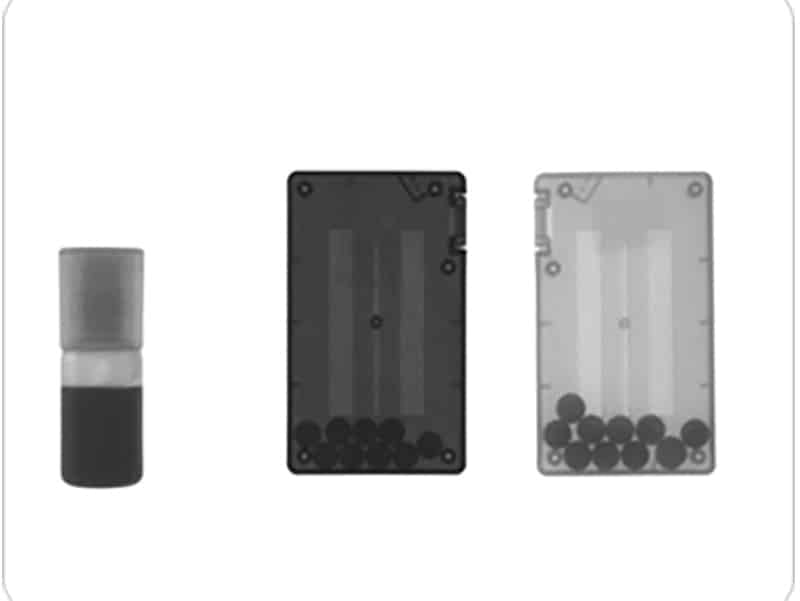

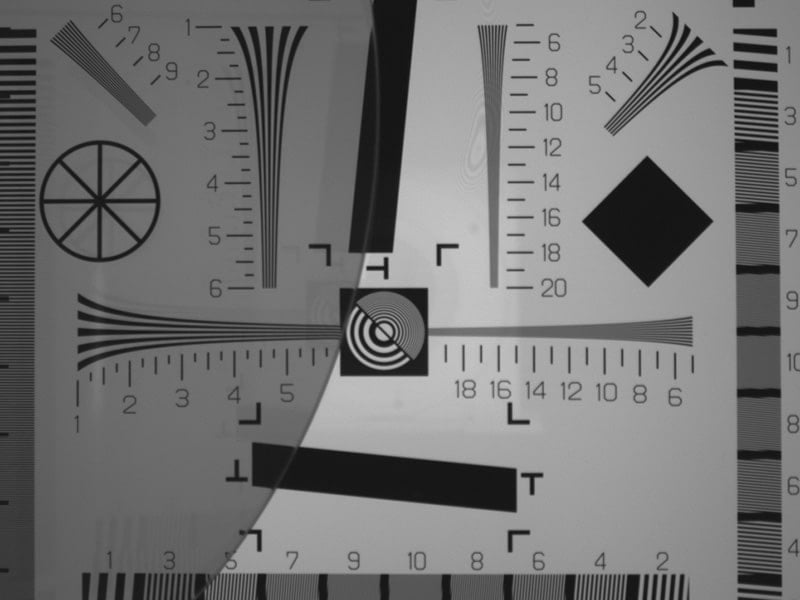

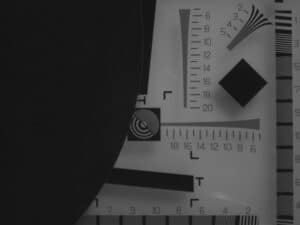

Material See-Through Inspection

SWIR cameras enable non-contact inspection through materials like silicone, wafers, plastics, fog, and inks, allowing users to safely perform delicate factory inspections.

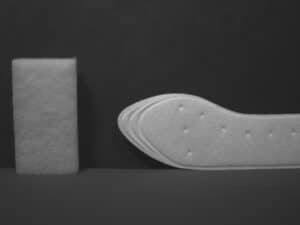

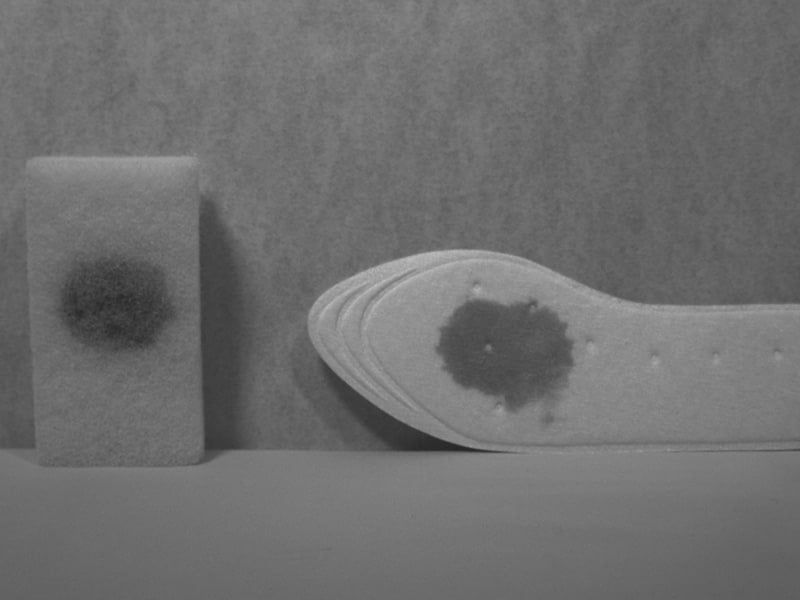

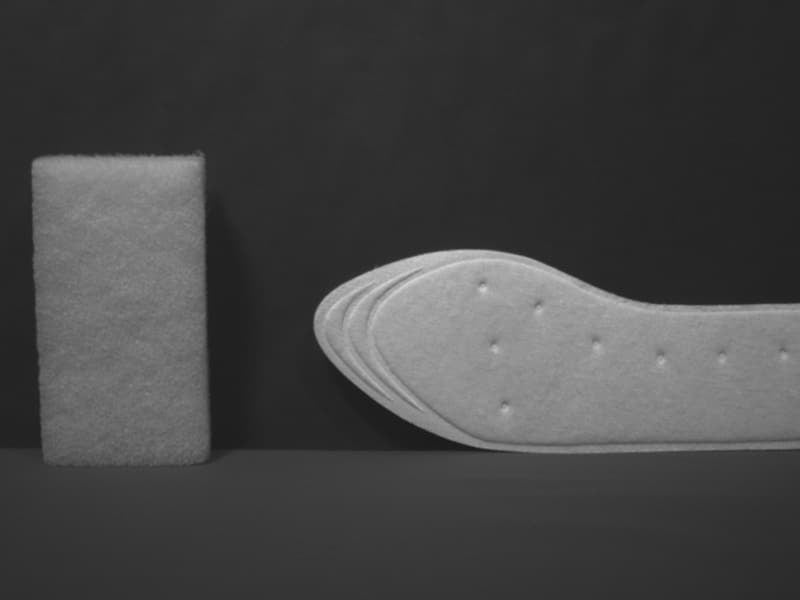

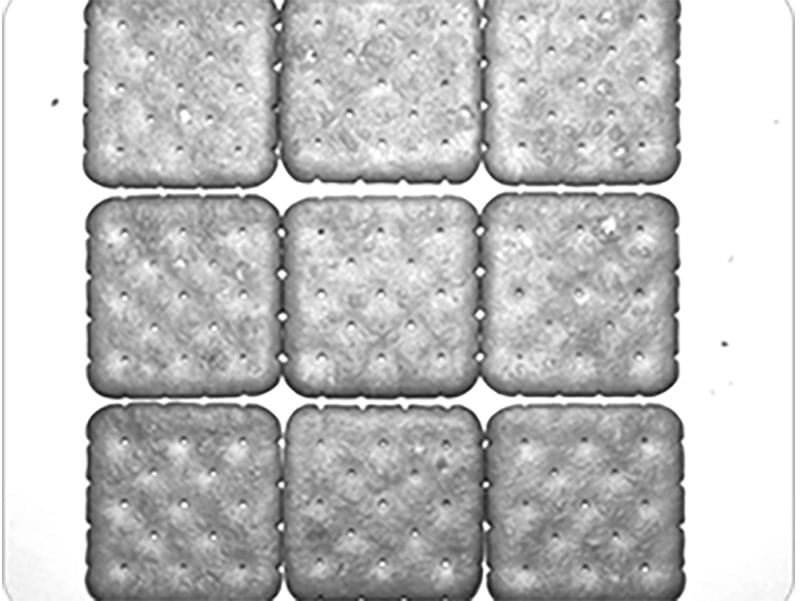

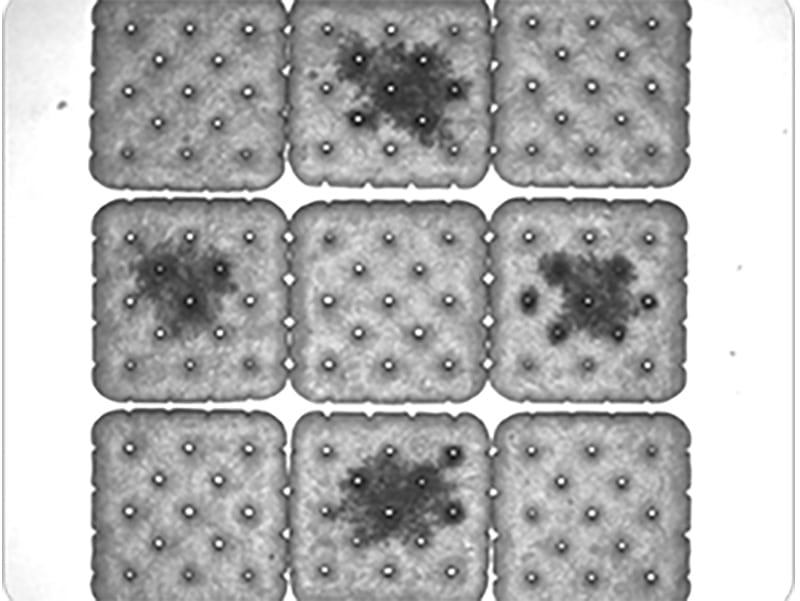

Moisture Detection

Moisture strongly absorbs SWIR light and appears very dark in SWIR images, enabling reliable, high-speed detection.

CREVIS SWIR Demo Kit

Evaluate the HG-T130SW in your own facility with the CREVIS SWIR Demo Kit. Available for free demo testing in the US or for direct purchase, this ready-to-use package provides everything you need to immediately test SWIR imaging for your specific inspection applications.

The kit is a compact, all-in-one setup designed for fast, plug-and-play testing on the factory floor or in the lab. It includes:

• CREVIS HG-T130SW Camera: The basic kit features the exact 1.3MP CMOS SWIR camera detailed above.
• Varifocal SWIR Lens: Includes your choice of a 5–12.5mm or 12–25mm focal length lens.
• SWIR Ring Light: A dedicated 1380nm wavelength ring light designed for optimal SWIR illumination.
• System Controller: A compact, Linux-based Raspberry Pi controller that acts as a power source, lighting controller, and viewer program.
• Accessories & Case: Includes all necessary camera cables securely packaged in a durable, portable case for easy transport.

Contact us today to request a free trial period or to purchase a dedicated testing kit for your facility.

Documents and Downloads

• CREVIS manuals
• CREVIS GitHub software repository
• CREVIS HG-T130SW CMOS SWIR camera STP, DWG and PDF drawing files
• CREVIS SWIR Camera Catalog
• CREVIS Machine Vision Camera Catalog
• CREVIS SWIR Camera Demo Kit

Notes

• Actual cameras may differ from these images. Please see the catalog for the exact dimensions.
