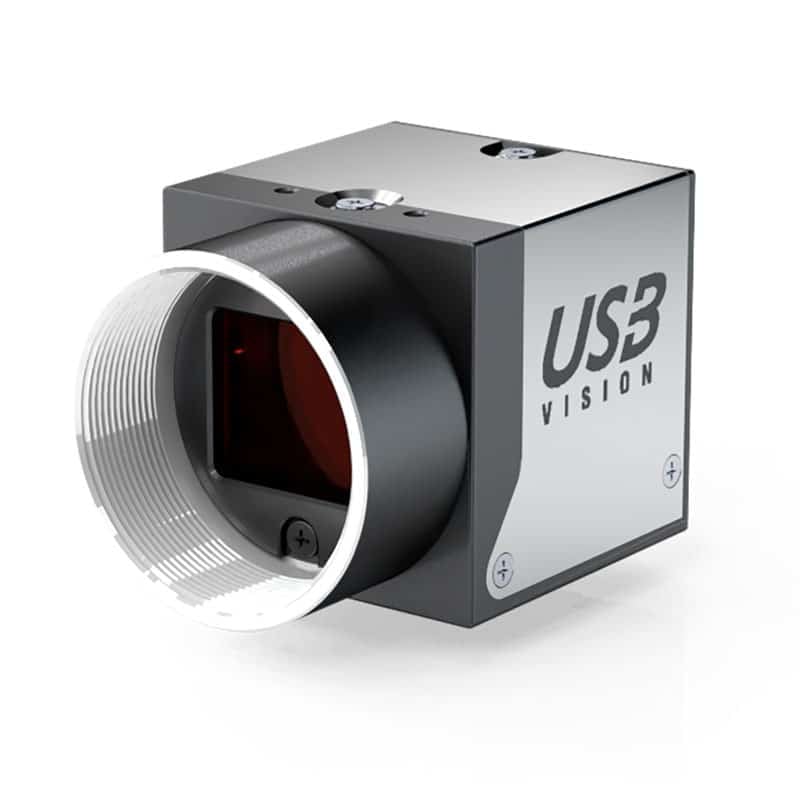

CREVIS 29x29x29mm USB Camera Left Side 45 Degree
CREVIS 29x29x29mm USB Camera Dual Right Side 16x9

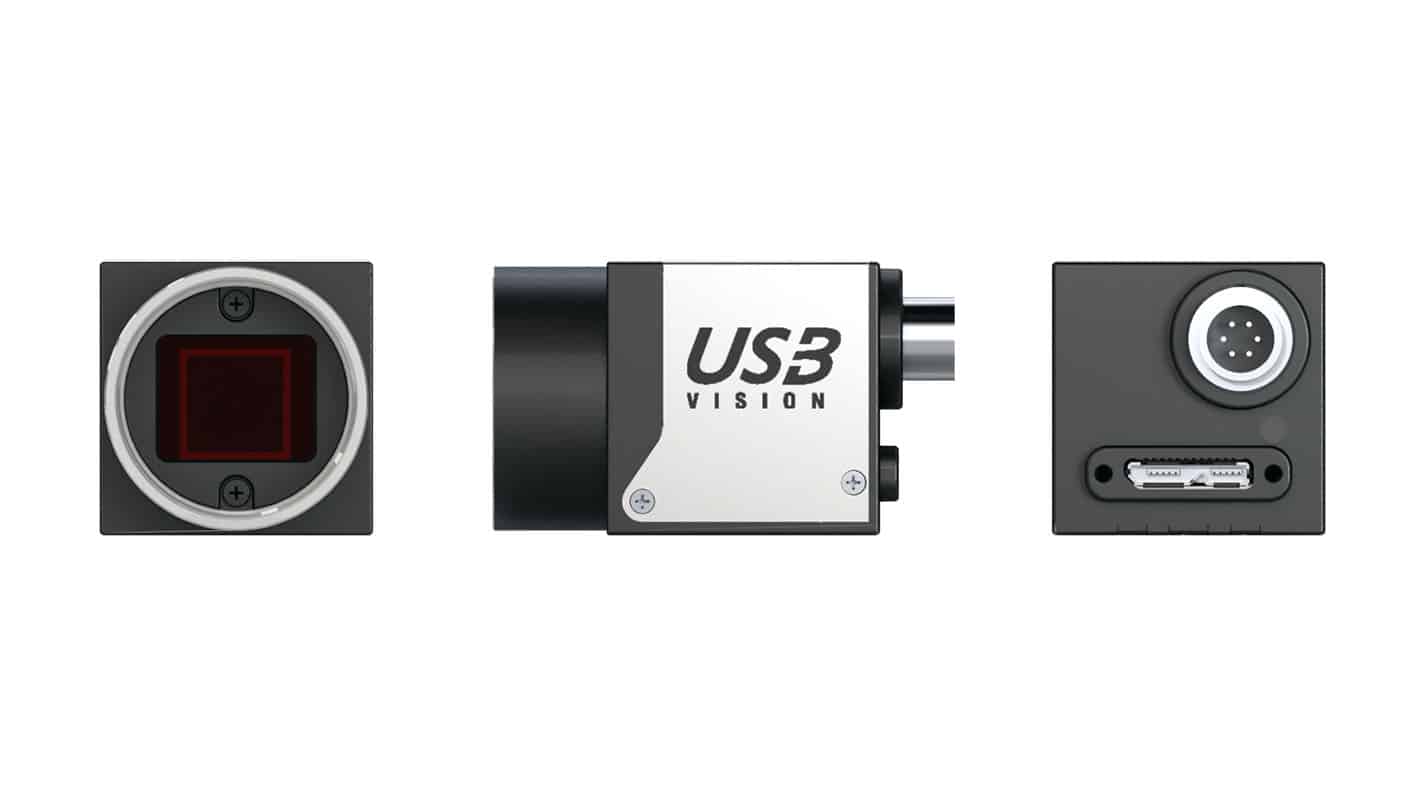

CREVIS 29x29x29mm USB Camera Triple 16x9

CREVIS 0.4MP, 523fps, USB Camera with an IMX287 Sensor

$315.00

The 0.4MP CREVIS MU-A040M-523 (mono) and MU-A040K-523 (color) USB 3.1 cameras feature a Sony IMX287 sensor and deliver 523fps performance. They were designed and manufactured in South Korea, and a 3-year warranty ensures your investment. US import tariff-friendly.

Brand: CREVIS
Manufacturer: CREVIS
Megapixel: 0.4
Frame Rate (fps): 524
Interface: USB 3, 6-pin Hirose
Sensor Size (in): 1/2.9
Sensor Type: CMOS
Sensor Model: Sony IMX287
Resolution: 720x540
Pixel Size (µm): 6.9
Shutter: Global
I/O Port: 6-pin Hirose
Power Options: USB 3, 6-pin Hirose
Lens Mount: C-Mount
Add to quote
SKU: MU-A040M/K-523 Categories: , , Tag: Brand:

Features of the CREVIS IMX287 USB Camera

  • US import tariff-friendly
  • Designed and manufactured in South Korea
  • Easy integration via API library
  • Extensive firmware features
  • External and software triggering
  • SuperSpeed USB (USB 3.1 Gen 1) offering speeds up to 5Gbps
  • Power supply via USB interface and 6-pin Hirose connector
  • Dimensions: 29mm x 29mm x 29mm
  • Conforms to the USB3.0 Vision protocol and the GenICam standard
  • Conforms to CE and FCC standards

Industry Applications Include

  • Factory automation
  • Medical packaging inspection
  • Food and beverage inspection
  • Electronic semiconductor inspection

Documents and Downloads

Notes

  • Actual cameras may differ from these images. Please see the catalog for the exact dimensions.
